Incredible Art Deco Beachfront House with Polymer Rooftop Mini-Golf! Ynyslas, Borth, Aberystwyth

There were some unusual plans in the pipeline for this art deco structure on the Welsh coast
1 of 24

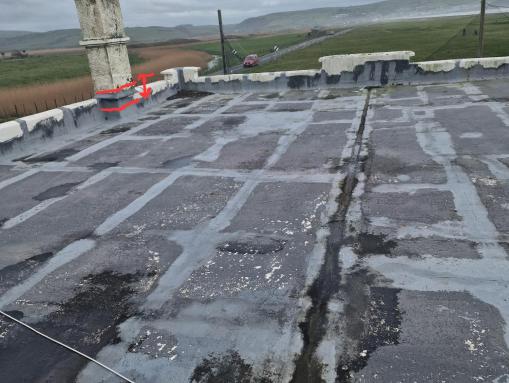

But the roof was in a state, with significant puddling
2 of 24
and multiple areas in varying states of repair
3 of 24
Some areas were large
4 of 24
Others were small
5 of 24
We applied 200mm smooth plaster above the insulation line all around the chimneys
6 of 24
Then we set about insulating...
7 of 24
...covering the entire area in 150mm warm roof power deck E insulation
8 of 24
The parapet walls were insulated and encapsulated with Polyroof Flexible Protec 25yr waterproof membrane
9 of 24
All the chimney stands were encapsulated and coated
10 of 24
and undercoating began
11 of 24
The sun drying the undercoat. Note the insulation on the parapet walls
12 of 24

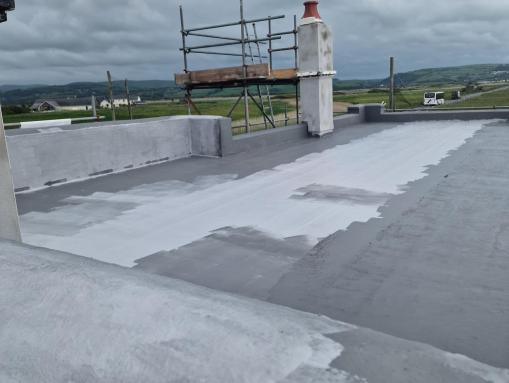

Back to work layering the undercoat
13 of 24

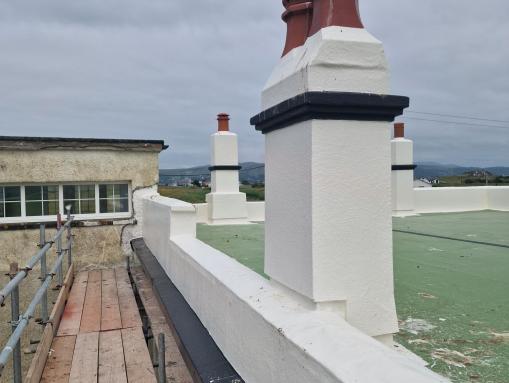

The chimneys were all re-rendered
14 of 24
The Polyroof 25 year system extended over every surface and upstand
15 of 24
The colour scheme was guided by the property's Art Deco heritage
16 of 24

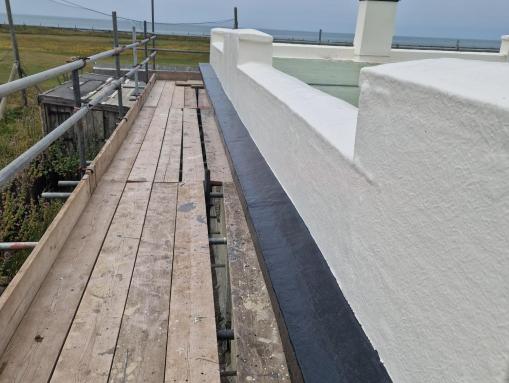

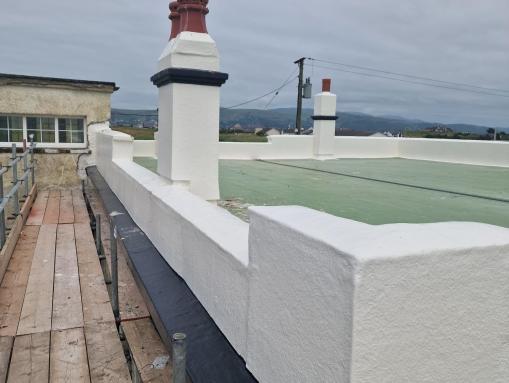

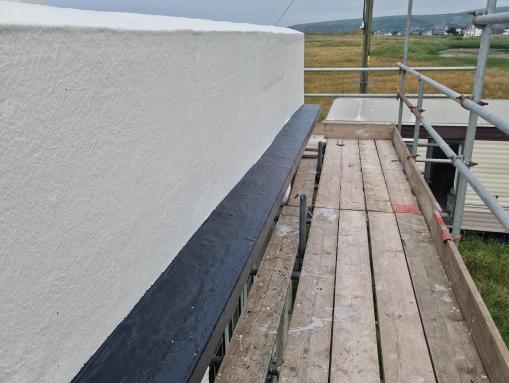

The lower pelmet of the parapet was coated in anthracite black
17 of 24
Again, keeping to the Art Deco theme
18 of 24
The terrace was then waterproofed and coated in Forest Green
19 of 24

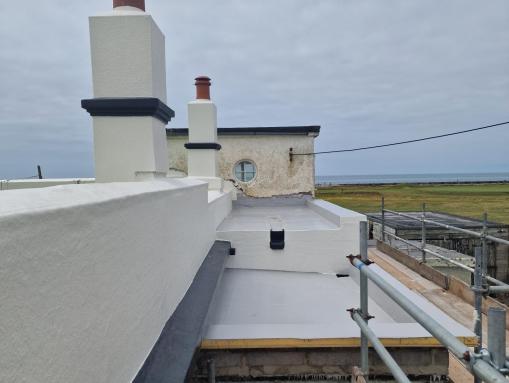

A shot showing the complicated multi-levels, the drainage channels and the blending of areas
20 of 24

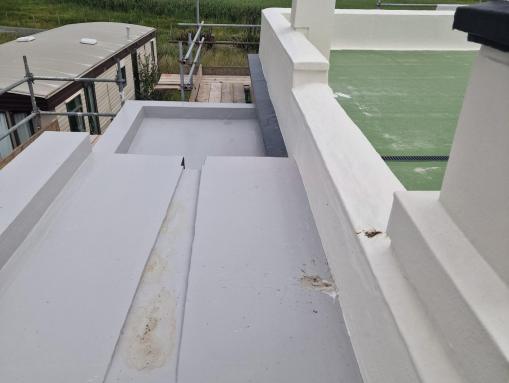

Drainage channels moulded into the roof blend seamlessly in
21 of 24
Gutter channels were also coated in anthracite black
22 of 24
As you can see, there will be no more puddling in these areas
23 of 24
From one golf course to another...
24 of 24

A job in a million! This art deco concrete structure property situated yards from the beach & sand dunes at Ynyslas just north of Borth and Aberystwyth, needed some tricky waterproofing work over the entire flat roof.

Set at the end of the Borth Golf Links, the roof comprises a 120m2 warm room terrace finished in Forest Green decorative quartz. Frameless glass fitted to the internal sides of the parapet walls and a couple of putting holes transform the space into a miniature golf spot for a bit of Sunday fun!

This was a tricky job, not least working out how the drainage would work over the entire multi-area roof, together with insulation (as it had to be a warm roof). In the end, we included 150mm warm roof power deck E insulation, insulating the parapet walls and encapsulating them with Polyroof Flexible Protec Polyester 25 year waterproof membrane - providing a jointless, seamless finish.

The chimneys were re-rendered, flashed & encapsulated in Poly Roof 25 year system and a mixed pigment of Art Deco RAL-9010 colour - a pure white that brings the art deco structure vividly to life.

Parapet insulation was made almost invisible & blended in.

The parapet lower pelmet was waterproofed and coated in anthracite black, providing a sharp contrast with the white, then encapsulated to an underneath detail to complete the external wall insulation & K-rend the final wall finish, matching it with the aluminium black windows.

The entire terrace was then waterproofed & top-coated in Forest Green for the base-coat to receive the Forest Green quartz @ a later date when observatory building works & glass balustrade are complete.

More installments to follow on how it's done...
